Toyotal Chaos 82 Mini Build
Goto page Previous  1, 2, 3 ... 30, 31, 32

Post new topic   Reply to topic    Toontoys Forums Forum Index -> Hard Core Corner
View previous topic :: View next topic
Author Message
benji



Joined: 02 Nov 2005
Posts: 711
Location: Saskatoon

PostPosted: Thu Mar 02, 2017 7:09 pm    Post subject: . Reply with quote

delete me
_________________
http://www.youtube.com/watch?v=uM_QZVc6btw


Last edited by benji on Thu Mar 02, 2017 7:36 pm; edited 3 times in total
Back to top
View user's profile Send private message MSN Messenger
benji



Joined: 02 Nov 2005
Posts: 711
Location: Saskatoon

PostPosted: Thu Mar 02, 2017 7:16 pm    Post subject: Reply with quote

varty yo wrote:
Wow! I had to think twice what this was when the notification popped up on my phone lol

Did you ever really drive it before ripping all apart again?? haha


Just to Dairy Queen and back Cool
_________________
http://www.youtube.com/watch?v=uM_QZVc6btw
Back to top
View user's profile Send private message MSN Messenger
earnie



Joined: 20 Dec 2003
Posts: 115
Location: Regina, Saskatchewan

PostPosted: Fri Mar 03, 2017 6:49 am    Post subject: Reply with quote

Looks really good Ben. I look forward to many trips to Dairy Queen! Maybe we can sprinkle a little Captain Crunch or Fruity Pebbles on our iced cream. Laughing
_________________
"Flamethrowers are proof that someone, somewhere said to themselves, "I would really like to light those people over there on fire"".
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
benji



Joined: 02 Nov 2005
Posts: 711
Location: Saskatoon

PostPosted: Sat Apr 08, 2017 8:07 am    Post subject: Reply with quote

Few more updates...

I've been dealing with lots of front diff drama lately. The short version is that I got all excited about ordering an 8" Diamond because after I removed the factory bottom brace I noticed the diff was bent. I was able to straighten it out with some weld. Brian at Front Range said he wouldn't be surprised if Toyota used that brace during production to keep things true.

These factory braces are actually quite beefy. Almost 5mm.


No good...

This was about half of the weld I had to lay on the tube to get it to pull that tiny bit.

Fingers crossed this is ok


Found this in the scrap metal pile at work. So sad. I went back a couple days later to grab the OEM Snorkel but someone decided to move the truck a few feet with a loader and demolished the snorkel.


Leftovers from the Land Cruiser...


These are oem rear bump stops off that LC. Should work perfect for the front.


Here is the comparison between the LC 9.5 and Toy 8" Pinions. 27 vs 32 Spline. A good upgrade down the road if I can't make the 8" stuff last.



Making some room for Longfields.


This made quick work of it.

Ready for weld. 12" I beam to keep the diff from warping!

The beam was handy for position the diff.

3 hours tig time later...

Not all stacked dimes but it will all look the same after epoxy and paint.

_________________
http://www.youtube.com/watch?v=uM_QZVc6btw
Back to top
View user's profile Send private message MSN Messenger
slacker



Joined: 14 Mar 2004
Posts: 1415
Location: Penticton BC

PostPosted: Sat Apr 08, 2017 5:07 pm    Post subject: Reply with quote

looks awesome Ben
_________________
/86 Toy 4x4
/84 toy custom 2wd hotrod 7mgte intercooled , lambo doors and custom fiberglass
check out my employer @ http://www.toyotafiberglass.com
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
benji



Joined: 02 Nov 2005
Posts: 711
Location: Saskatoon

PostPosted: Mon Apr 10, 2017 7:33 am    Post subject: Reply with quote

Finished up with a dry fit yesterday to make sure the Longfields clear the balls. Ready for paint!


Elocker motors are a pita to fit when you turn the pinion angle up but I'm happy the second time around.

_________________
http://www.youtube.com/watch?v=uM_QZVc6btw
Back to top
View user's profile Send private message MSN Messenger
benji



Joined: 02 Nov 2005
Posts: 711
Location: Saskatoon

PostPosted: Sun May 28, 2017 8:51 am    Post subject: Reply with quote

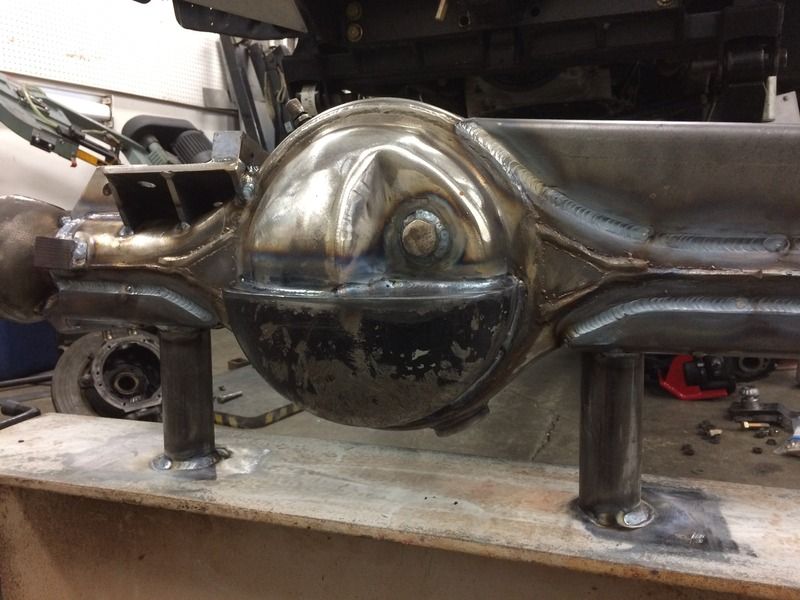

Diff is done. I'm pretty happy with how things turned out. I took the truck for a quick tour around the alley and it seems to ride a little better with the HD springs. I also made some proper brake line mounts.

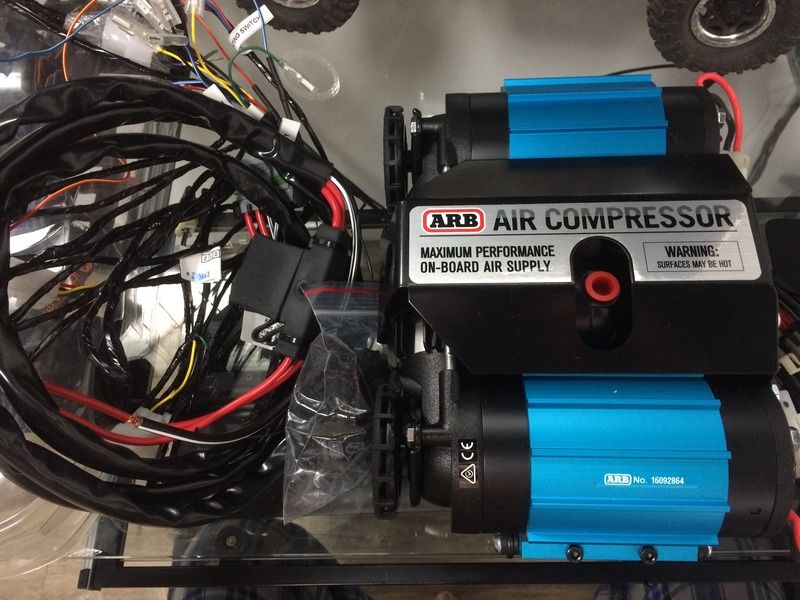

ARB twin compressor! I can't wait to try this thing out.

_________________
http://www.youtube.com/watch?v=uM_QZVc6btw
Back to top
View user's profile Send private message MSN Messenger
benji



Joined: 02 Nov 2005
Posts: 711
Location: Saskatoon

PostPosted: Fri Jun 02, 2017 3:17 pm    Post subject: Reply with quote

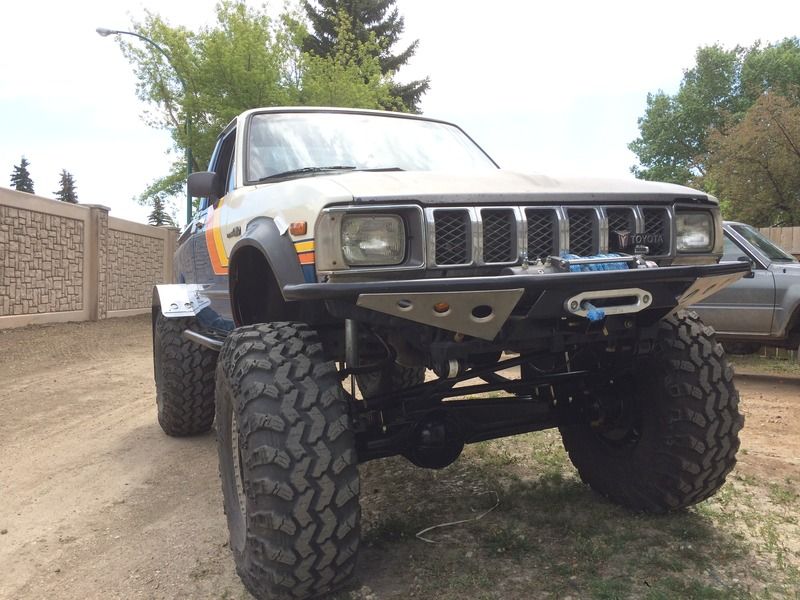

Got some dents worked out of this hood. Now it needs primer.



I think the plan will be to glue these flares on my stock fenders. I cut them off some reproduction fenders I bought ages ago. They will be painted medium blue.


I can mount some vinyl edging on them to cover up the front tires.

_________________
http://www.youtube.com/watch?v=uM_QZVc6btw
Back to top
View user's profile Send private message MSN Messenger
